The new standard for ventilator calibration
SpiroSonic VentiTest
Digital ultrasonic ventilator calibration solution
Accurate – PureFlow digital ultrasonic technology for improved accuracy
Easy to use – Wireless operation for quick testing, USB connection to PCs for advanced features
Ventilator calibration really matters. Digital ultrasonic multi-path sensors provide the most accurate calibration solution.

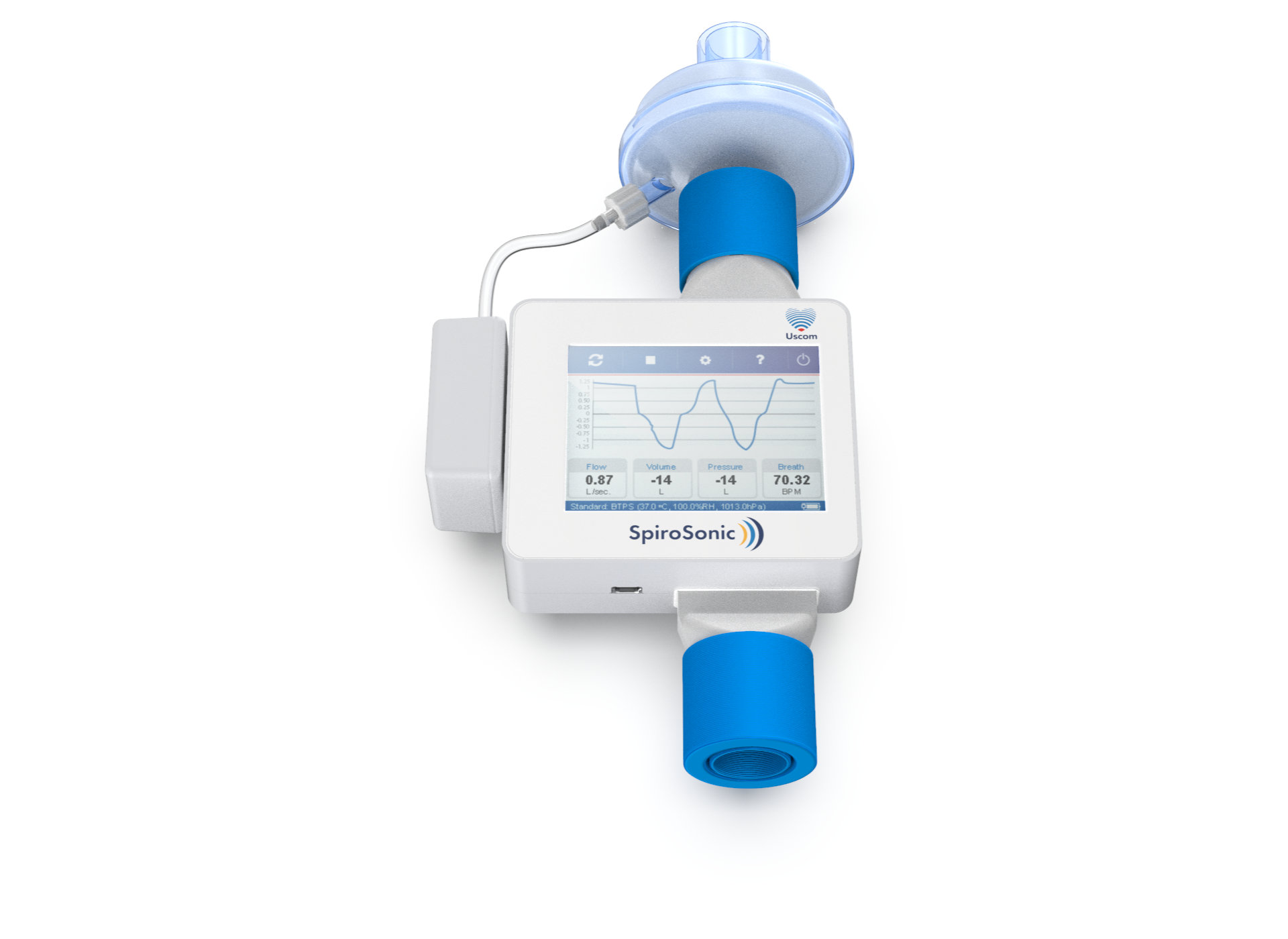

Meet VentiTest

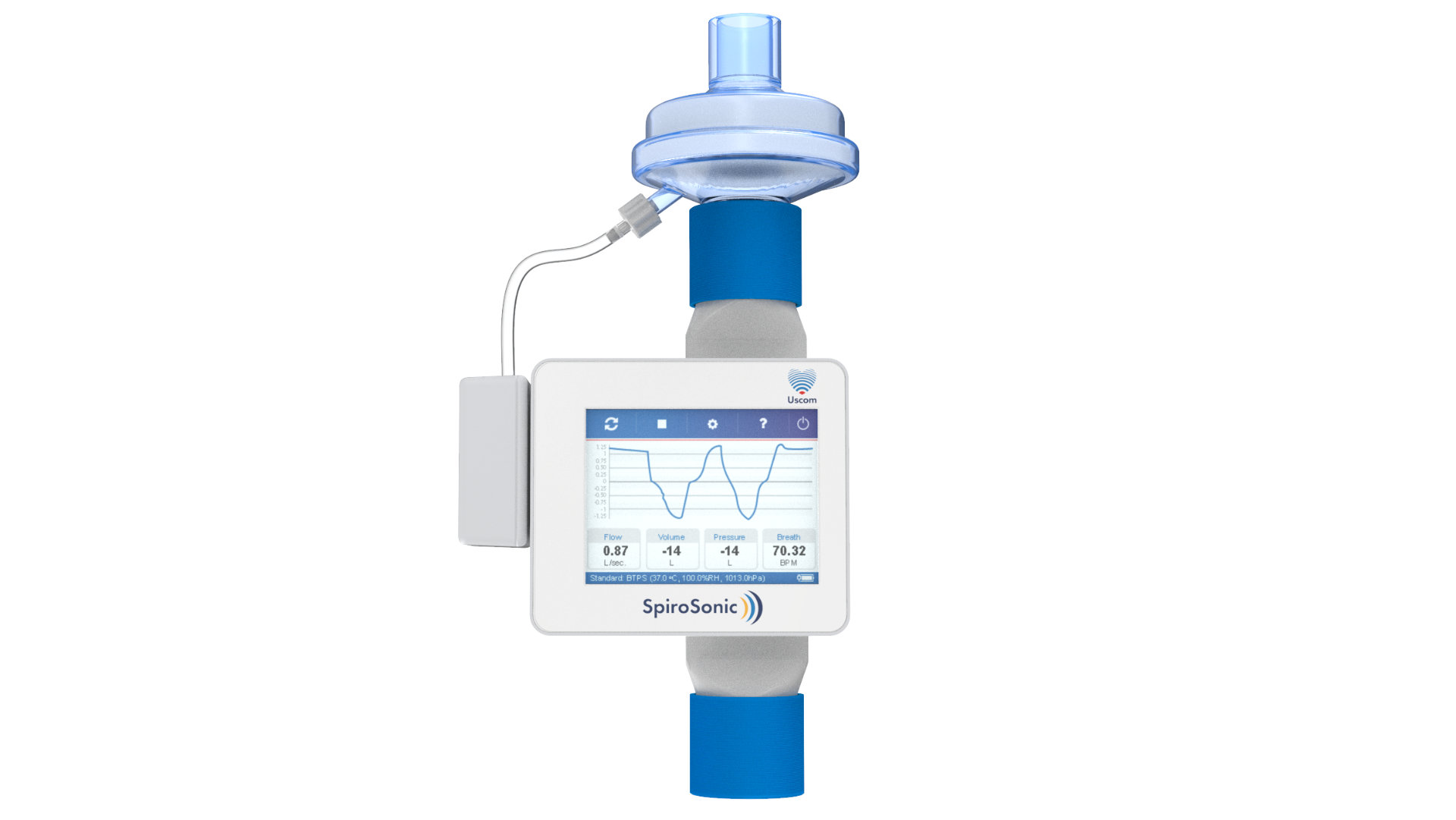

Self-contained, wireless ventilator testing with touchscreen

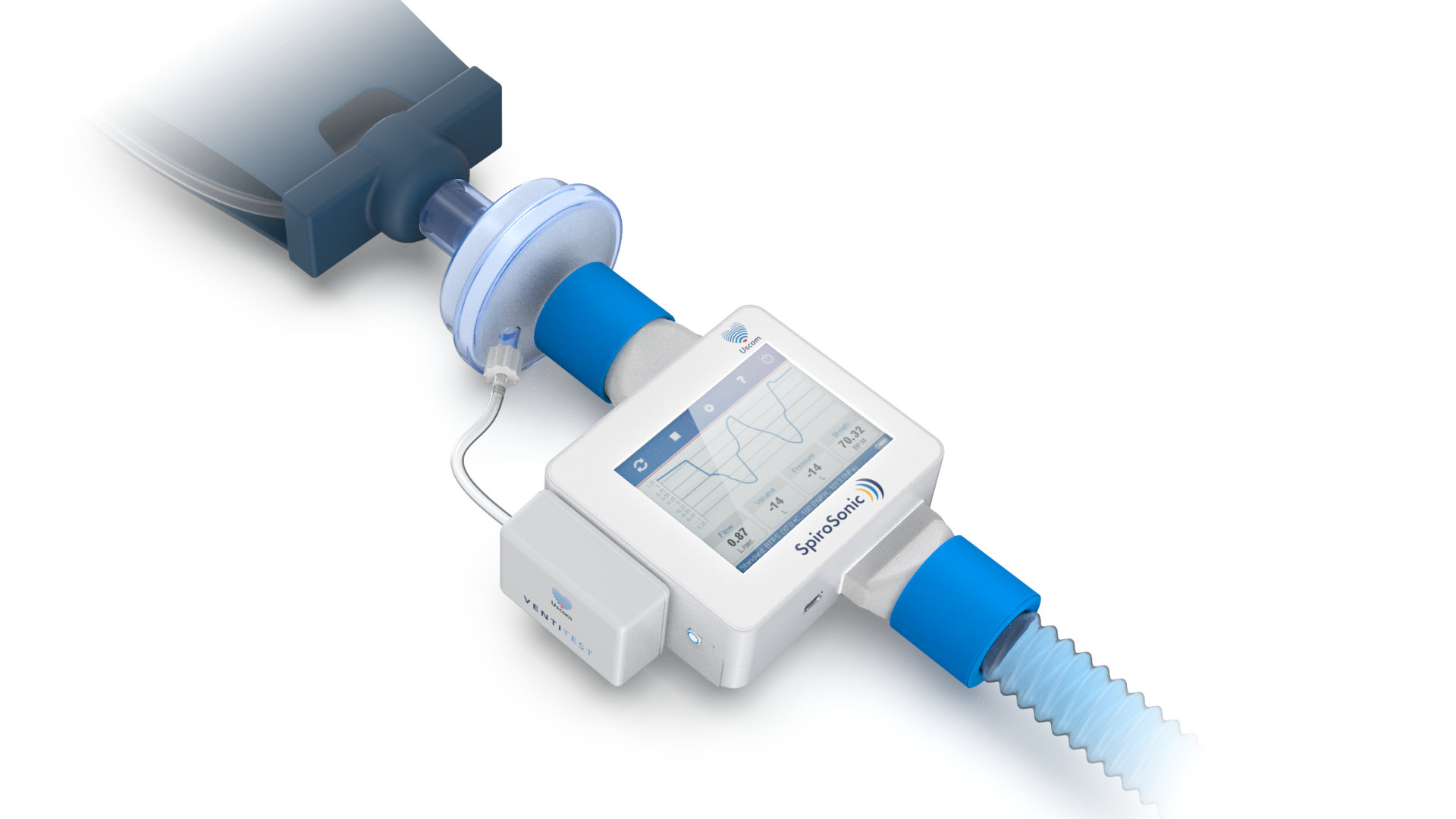

VENTITEST is an innovative multi-path digital ultrasonic ventilator calibration solution. The integrated touch-screen and high capacity Lithium-ion battery allows for standalone operation and quick on-site testing for validation of ventilator outputs, while the VENTITEST-S (PC software) provides data logging, highly detailed data display, customizable flow, volume, pressure charts and reporting of results
Ultrasonic technology
The new standard in ventilator calibration
Digital ultrasound provides the most accurate and simple method for sensing pressure and flow, and therefore for calibrating ventilators.
Digital ultrasound has a resolution in the order of 2.5% for pressure and flow measurement, and the technology requires minimal calibration. Additionally the flow through tube of the VENTITEST has minimal flow impedance and is therefore improving efficiency and accuracy.
VentiTest-S pc software
PC connection for additional features
An easy-to-use software solution that provides a digital readout of ventilator outputs of flow, pressure and volume with 16 calculated cycle parameters that guide optimization of ventilator performance. Measured data can be logged into .csv format for additional analysis.
SpiroSonic VentiTest
Specifications
| Dimensions of the device | 37x81x92 mm |
|---|---|
| Sensor Tube diameter | 15/22 mm (ISO standard) |
| Weight | 210 grams |
| Battery | Internal 3,7 V Li-Ion battery (rechargeable via 5V 500 mA mini USB charger) – 5 hours of operation with a single charge |
| Display | Quarter VGA (320×240 pixels), 262k colors with touchscreen |
| Printing | The instrument can print to any HP deskjet and officejet printers (via USB interface) that support the PCL3 language |
| Communication port/interface | Connection to PC via USB or Bluetooth |
| USB connector type | Standard 5-pin mini B type |
| Electrical protection | Internal battery power supply |
| Level of electrical protection | BF |
| Protection against water ingress | IP32 |
| Operating and storage conditions | Temperature: 10 – 40°C |
| Relative humidity: 5 – 95% without condensation | |
| Dimensions of the packaging | |
| Weight of packaging |
| Flow/volume measurement system | PureFlow technology |
|---|---|
| Measurement principle | PureFlow ultrasonic multiple-path |
| Maximum volume | ± 20 L |
| Flow range | ± 700 L/min |
| Pressure range | ± 250 cmH2O |
| Volume accuracy | ± 2.5% or 50 mL whichever is greater |
| Flow accuracy | ± 2.5% or 2 mL/s whichever is greater |
| Sample rate | 100 Hz |
| Expiratory impedance at 14 L/s flow | < 0,15 kPa/L/s |
| Flow | Instantenous flow Peak inspiratory flow Peak expiratory flow, Peak inspiratory : Peak expiratory flow ratio |
|---|---|
| Volume | Tidal inspiratory volume Tidal expiratory volume Inspiratory minute volume Expiratory minute volume |
| Pressure | Instantenous pressure Minimum pressure Peak inspiratory pressure Peak expiratory pressure |
| Time | Breath rate (BPM) Inspiration time Expiration time Inspiration : Expiration ratio |
Benefits
Why choose SpiroSonic VentiTest?
VENTITEST is an innovative multi-path digital ultrasonic ventilator calibration solution. The integrated touch-screen and high capacity Lithium-ion battery allows for standalone operation, while the VENTITEST-S (PC software) provides additional features.
Low resistance digital multipath acoustic flow monitor
Bi-directional flow monitoring
High resolution piezzoresistive monolithic silicone pressure sensor
Simple, rapid and accurate ventilator testing
Standalone operation with touchscreen interface
New standards of flow accuracy ± 2.5%
Automatic calibration for pressure, temperature and humidity (optional)
No moving parts or consumables
Disinfectable – Thanks to the continous flow tube the device is fully disinfectable to prevent cross-contamination.
USB connection to PCs for archiving and analysis
Buy
SpiroSonic VentiTest
Ventilator calibration solution
Package Contents
- VentiTest ultrasonic ventilator tester
- VentiTest-S PC software
- Test Lung (1L)
- Plastic carrying case
- Plugs for disinfection
- Calibration Certificate
